ARC Series™ Connectors
Rectangular, Thermoplastic Connectors for Harsh Environment Applications
Amphenol Sine Systems ARC Series™ Connectors are an IP68 and IP69K rated (in mated condition), rugged, heavy-duty, environmentally-sealed, thermoplastic, rectangular connector series where high pin-counts are required in situations with controlled and/or uncontrolled environmental conditions. Available in standard Plugs and Receptacles, PCB Receptacle BoardLock™ and Flanged Receptacle PanelMate™ options.
Applications: Transportation, Heavy Equipment, Agricultural, Automotive, Off-Highway, Alternate Energy, Marine and other demanding interconnect architectures.
Features
- Utilizes A Series™ Contacts
- Jackscrew w Threaded Insert for Mating
- Bonded Front Seals on Plugs
- IP68 rated (Dust tight; 1M of Water for 24 Hours, in mated condition)
- IP69K rated (Dust tight; High-Pressure Waterproof, 4 Points (0°, 30°, 60°, 90°), in mated condition)
- Standard or Reduced Diameter Rear Seals
- Available in Multiple Keying Options
- Comparable with existing standard products industry-wide
- Optional A Series™ Protective Backshell Boots available

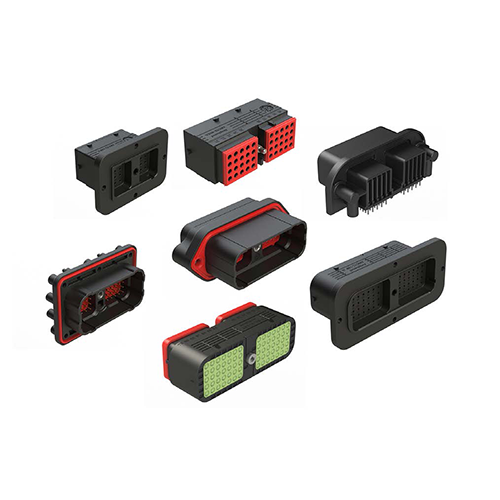

Product Images
Datasheets and Catalogs
ARC Series™ Connectors DatasheetContact your local sales office or email [email protected] for more information.
