Distributed Power & Control Factory Automation
As one of the largest providers of distributed power and control interconnect systems in the World, we offer numerous plug & play, scalable solutions for your next high-power installation. If one of our standard products doesn’t fit your specific needs, our Engineers will work with you to custom design a solution specific to your application. We are your one source for proven, reliable and innovative results in today’s ever-changing and demanding interconnect markets.
- UL/cUL Quickly Achieve Standard Compliance
- Easy ‘Plug & Play’ Installation
- Tamperproof, Over-Molded Cord Sets
- TC-ER Cable Jacket Reduces Raceways & Conduit
- Industrial Grade Insulation Equals Higher Reliability
- IP67/IP68 rated (see individual datasheets)

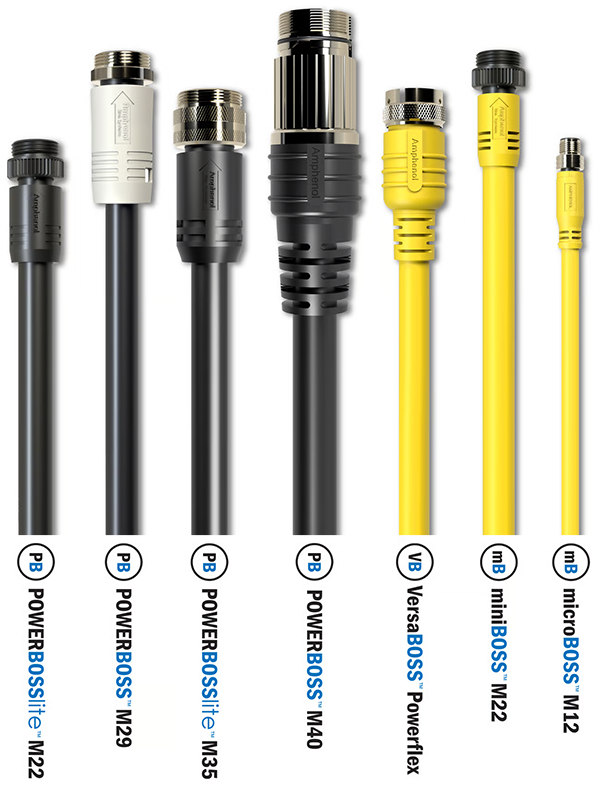

Power Distribution options include: PowerBOSSlite™ M22 (7/8"), PowerBOSSlite™ M35 (1-3/8”), PowerBOSS™, PowerBOSS™ M29, PowerBOSS™ M40, PowerBOSS™ M40 featuring Checkmate™, and ControlBOSS™
VFD Cable Assembly options include: VersaBOSS™ - FC Hybrid, VersaBOSS™ - MC, and VersaBOSS™ - Powerflex
Control Communication Sensor Cordset options include: microBOSS™ M12 (1/2"), miniBOSS™ M22 (7/8"), ControlPower, DeviceNet, and Ethernet
PowerBOSS™ M40
32A Power/5A Signal Max; 600V
- Available in 6 Position (4 + 2), 40mm Size
- 8-10AWG Max Wire Range
- Standard or Quick Coupling System
PowerBOSS™ M35
32A Power Max; 10AWG Wire
- Available in 3 or 4 Position, 35mm Size (1-3/8”)
- TC-ER or TC-ER / STOOW Rated Cable
- Straight or 90 Degree Cable Exit
- Standard Threading Coupling System
VersaBOSS™ Powerflex
20A Power/5A Signal Max; 600V Power/30V Signal
- Available in 9 Pos w/ Multiple 4 Power / 5 Signal Cable Configurations
- 12-18AWG Wire Range
- VFD Rated Static or High Flex Cable Options
- Quick Locking Bayonet Coupling System, 32.9mm Size
PowerBOSS™ M29
25A Max UL/cUL 2237/ 29A Max UL/cUL 2238
- 600V; 12AWG Wire, Shielded, TC-ER Per UL1277
- Available in 4 Position for 3 Phase Control Power
- Standard Threading, 29mm Standard Size
PowerBOSSlite™ M22
24A Max; 600V; 14AWG Wire
- Available in 3 or 4 Position
- TC-ER or TC-ER / STOOW Rated
- Straight or 90 Degree Cable Exit
- Standard Threading, 22mm (7/8”) Size
miniBOSS™ M22
13A Max; 600V; 16AWG Wire
- Available in 2 thru 6 Position
- Utilizes UL STOOW/CSA Type ST cable
- High Flex TPE jacketed UL Listed TC-ER Cable Option
- Straight or 90 Degree Cable Exit
- Standard Threading, 22mm (7/8”) Size
microBOSS™ M12
4A Max; 300V; 22AWG Wire
- Available in 3, 4 and 5 position
- Straight or 90 Degree Cable Exit
- Standard Threading Coupling System
Contact your local sales office or email [email protected] for more information.
