4000 Series Buccaneer Connectors
The 4000 Series Buccaneer is our most compact and versatile circular connector to date. With a robust Valox PC/PBT construction and quick-turn bayonet coupling mechanism, this miniature sealed connector series is perfect for applications across a wide variety of markets requiring fast, dustproof and watertight power connections.
Rated to IP66, IP67, IP68 & IP69K standards, the 4000 Series is particularly suited to system designs in harsh environments where space is at a premium and an environmentally sealed interconnect solution with high performance features is required. It has power ratings up to 13A, 600V, cable range from 3 to 7mm and 2, 3, 4, 6, 8, 10 & 12 contact configuration. These cables provide cost and time savings to design engineers, installers, and maintenance engineers.
Features
- Sealed to IP68 when mated
- IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m depth for 2 weeks
- 2, 3, 4, 6, 8, 10 & 12 Contact configuration
- Power ratings up to 13A, 600V
- Cable acceptance range from 3 to 7mm
- Diameter over coupling ring 19.8mm
- Flex, Inline, Pre-Wired, Panel- and PCB-mounting body styles
- Colour coded O-rings & washers for easy identificaiton purposes
- Plug and Socket versions in all body styles
- Flame Retardant moulding material - Polybutylene Terephthalate/Polycarbonate (PBT/PC) UL94-V0
- Contacts supplied separately (except pre-wired and PCB versions)
- Sealing caps available to maintain IP68 rating
- Crimp and solder contacts
- cULus and VDE approvals
- EN60068-2-64 Vibration Resistance

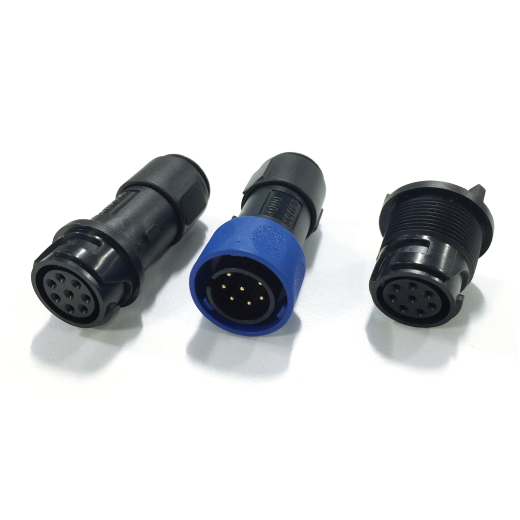

Product Images
Datasheets and Catalogs
Contact your local sales office or email [email protected] for more information.
