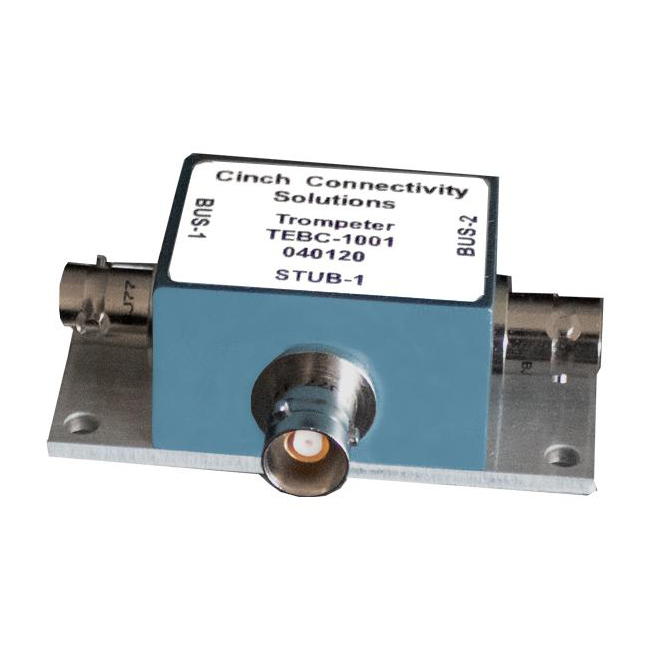

Trompeter™ MIL-STD-1553 Bus Couplers
The MIL-STD-1553 specification supports the connection of multiple devices through a redundant, deterministic, serial data bus. These devices are connected to the bus through tributaries called stubs. Stubs for Remote Terminals, Bus Controllers, or Bus Monitors, are connected to the bus through coupling boxes that provide single or multiple stub connections. These couplers provide the necessary shielding, isolation resistors, and transformer interface. The data bus passes through the coupler by connecting two connectors. Each coupler has one or more stubs (Trompeter offers up to eight stub configurations). The stub connections are left unterminated when not in use. If the coupler resides at the end of the bus, an external termination resistor is connected to properly terminate the bus. In addition to the bus couplers, Trompeter offers all of the needed terminators, RFI Caps, cable and cable assemblies required for a MIL-STD-1553 data bus link.
Features
- Meet the requirements of MIL-STD-1553B
- Lead free versions available
Applications
- MIL-STD-1553B test and integration
- MIL-STD-1553B bus controller design
- MIL-STD-1553B remote terminal design
- MIL-STD-1553B bus monitor design
- All MIL-STD-1553B data bus implementations
