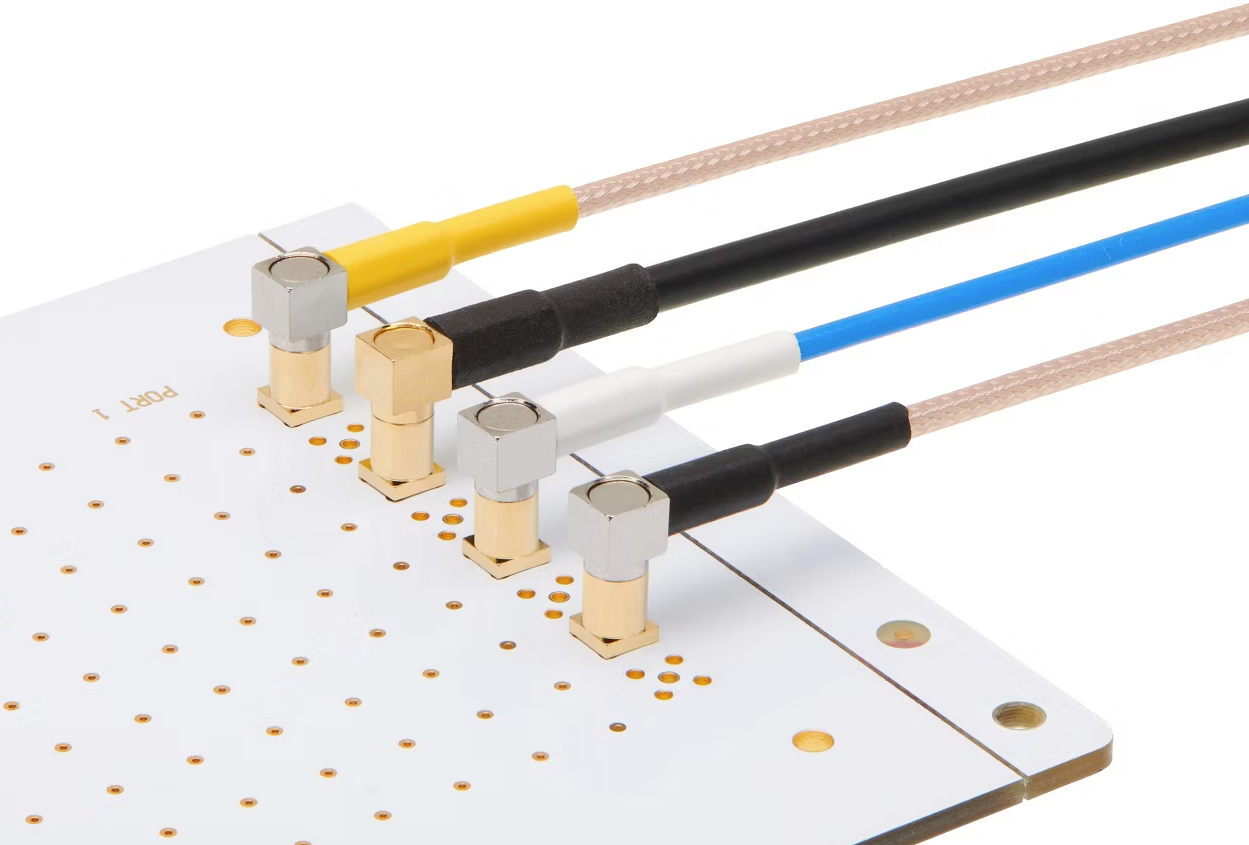

MMCX Connectors
MMCX Connectors, designed for compact and lightweight integration in telecommunications and consumer electronics, feature a unique snap-on interface which ensures mechanical stability without compromising the device’s form factor. The MMCX Power-over-Coax (PoC) Connectors are engineered for dynamic environments and feature a full-locking mating mechanism with zero gap and a non-snap ring design. These features provide stable and reliable ground (GND) connections for applications where continuous GND continuity is crucial. With a robust positive GND connection and a full-locking mating mechanism, this connector guarantees stable performance and secure connections, even under mechanical stress, while facilitating efficient power delivery.
Features:
- Microminiature
- DC to 6 GHz
- Snap-On coupling
- PCB Plugs – Edge mount / vertical SMT, straight or R/A through-board mount
- Cable Plugs/ Jacks, crimp / solder - straight or right-angle versions available
- Semi-Rigid Cables .086 and .047
- Flexible Cables – RG174/188/196/316/RD316 and 1.13mm
- Non-magnetic versions available for medical applications
- Between-series adapters also available
Contact your local sales office or email [email protected] for more information.
