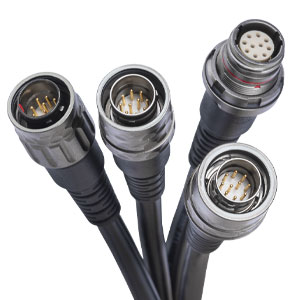

ODU AMC® Series T Military 3-in-1 Connectors
ODU AMC® Series T Military 3-in-1 Connectors are available with three locking housing options (push-pull, break-away, or screw lock) and in two sizes (shell sizes 9 and 12). Choose the appropriate interlock type, size, cable connection, insert, and number of contacts to suit the requirements. A built-in trapezoidal thread with serration ensures additional safety. The cable connection can be created as an over-molded variant or with standard MIL backshells, and a protective cap prevents contamination and ensures the functionality of the connector. ODU AMC® Series T Robust Circular Connectors can be cleaned quickly and easily, even under extreme conditions and stress.
NOTE: The contact arrangement of an ODU data transmission connector differs from a standard data transmission connector due to the robust ODU specific design. However, the ODU design meets the electrical specifications that are derived from the respective standard data transmission protocol.
Features
- Waterproof per MIL standard 810 (up to 20m)
- Operating temperature range from -65°C to +175°C
- Multiple sealed mechanical components, completely protected
- Suitable for MIL backshell and crimp contacts
- High vibration resistance
- Optimized field assembly and installation
- Cable assembly solutions
- Reverse gender option
- EMI shielded
- Rugged, compact design
- High flexibility with three locking variants
- Screw-lock is particularly suitable for applications with extremely strong vibrations
- Break-away is designed to release connections with manual force, allowing quick and easy disconnection in critical situations
- Push-pull mechanism reliably locks into device section, ball-lock system provides additional support, ensuring interference-free data transmission
